适用于标称截面1.5-1000mm⒉电力电缆式电线的铜导体与电气设备的连接。 铜接线端子特点：采用管料含铜量>99.9％的高纯T2铜管制造，长期工作温度-50℃-150℃，表面镀锡。
适用于标称截面1.5-1000mm⒉电力电缆式电线的铜导体与电气设备的连接。
铜接线端子特点：采用管料含铜量>99.9％的高纯T2铜管制造，长期工作温度-50℃-150℃，表面镀锡。
|

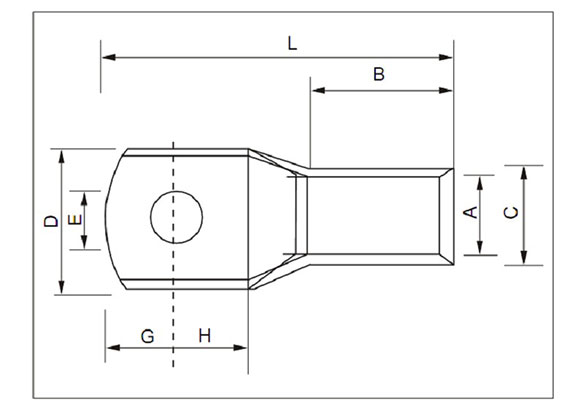

型号 |
类型 |
E |
C |
A |
L |
B |
D |
|
SC(JGA) |
6MM |
6.2 |
5.5 |
3.9 |
25.2 |
11 |
13 |
|
10MM |
6.2 |
6.5 |
4.9 |
27.5 |
11 |
13 |
|
|
16MM |
8.2 |
7.8 |
6.2 |
29.5 |
14 |
11 |
|
|
25MM |
8.2 |
9.5 |
7.5 |
39.0 |
17 |
14 |
|
|
35MM |
8.2 |
10.8 |
8.6 |
44.0 |
19 |
16 |
|
|
50MM |
10.5 |
13.0 |
10.8 |
50.5 |
19 |
19 |
|
|
70MM |
12.5 |
14.5 |
11.9 |
54.6 |
23 |
21 |
|
|
95MM |
12.5 |
16.5 |
13.5 |
58.8 |
23 |
25 |
|
|
120MM |
12.5 |
19.0 |
16.0 |
68.0 |
29 |
28 |
|
|
150MM |
12.5 |
21.0 |
17.4 |
76.5 |
29 |
30 |
|
|
185MM |
16.5 |
23.0 |
18.4 |
80.2 |
33 |
33 |
|
|
240MM |
16.5 |
26.0 |
21.4 |
88.0 |
37 |
38 |
|
|
300MM |
16.5 |
28.6 |
23.6 |
94.0 |
38 |
42 |
|
|
400MM |
16.5 |
34.0 |
27.0 |
113.0 |
38.0 |
49.5 |
|
|
500MM |
20.5 |
38.0 |
31.0 |
123.0 |
49.0 |
54.5 |
|
|
630MM |
20.5 |
45.0 |
37.0 |
133.0 |
55.0 |
64.5 |
