适用于标称截面1.5-1000mm⒉电力电缆式电线的铜导体与电气设备的连接。 铜接线端子特点：采用管料含铜量>99.9％的高纯T2铜管制造，长期工作温度-50℃-150℃，表面镀锡。

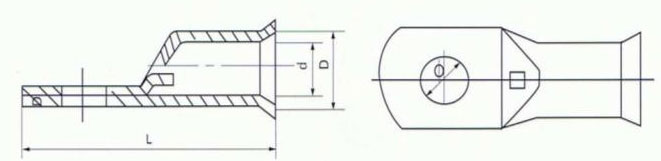

参数表
| 电缆接头 | 规格 |
Ø |
D(mm) |
d |
L |
|
SC(JGB) |
4MM |
Ø5.2,Ø6.2 |
5.0 |
3.4 |
21.0 |
|
6MM |
Ø5.2,Ø6.2,Ø8.2 |
5.5 |
3.9 |
26.5 |
|
|
10MM |
Ø6.2,Ø8.2 |
6.0 |
4.4 |
29.0 |
|
|
16MM |
Ø6.2,Ø8.2,Ø10.5 |
7.5 |
5.9 |
30.5 |
|
|
25MM |
Ø6.2,Ø8.2,Ø10.5 |
9.0 |
7.0 |
36.0 |
|
|
35MM |
Ø6.2,Ø8.2,Ø10.5,Ø12.5 |
10.8 |
8.6 |
40.0 |
|
|
50MM |
Ø8.2,Ø10.5,Ø12.5 |
12.5 |
10.1 |
48.0 |
|
|
70MM |
Ø8.2,Ø10.5,Ø12.5 |
14.5 |
11.9 |
54.0 |
|
|
95MM |
Ø10.5,Ø12.5 |
16.5 |
13.5 |
60.0 |
|
|
120MM |
Ø10.5,Ø16.5 |
19.0 |
16.0 |
66.0 |
|
|
150MM |
Ø12.5,Ø16.5 |
21.0 |
17.0 |
73.0 |
|
|
185MM |
Ø16.5 |
23.0 |
18.6 |
83.0 |
|
|
240MM |
Ø16.5 |
26.0 |
21.4 |
92.0 |
|
|
300MM |
Ø16.5,Ø20.5 |
30.0 |
24.4 |
104.0 |
|
|
400MM |
Ø16.5,Ø20.5 |
34.0 |
28.0 |
115.0 |
|
|
500MM |
Ø16.5,Ø20.5 |
38.0 |
32.0 |
125.0 |
